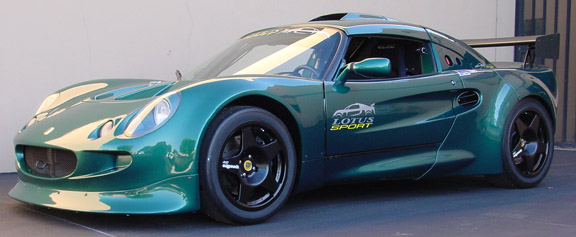

THE LOTUS SPORT ELISE SERIES

Specifications: left hand drive, engine Lotus Sport 200, full data logging Stack system ST8100P, carbon fiber interior trim, ignition cut-off switch, electric fire extinguisher system, Safety Devices full roll cage allowing passenger, 2 Recaro race seats w/ 6 point harness.

Engine:

• Transverse mid mounted 4 cylinder water-cooled, w/ oil cooler

• displacement 1795 cc; Bore 80 mm; Stroke 89.3 mm

• Torque 150 lbs-ft

• Power 203 bhp

• Maximum rpm 8000

• double overhead camshaft w/ hydraulic tappets

• electronic multi-point fuel injection

• electronic engine management

• lightweight performance exhaust and air intake

Transmission:     Quaife straight-cut close ratio 5 speed gearbox

Body:                 Aerodynamic composite bodywork with high down force front splitter and adjustable rear wing

Chassis:              Lotus-designed structure of epoxy-bonded aluminum extrusions. fireproof rear bulkhead.

Suspension:         Fully independent front and rear double wishbone suspension, Eibach race springs

                           Dynamic Suspensions 2 way adjustable racing dampers, adjustable front anti-roll bar.

Steering:              Rack and pinion, ratio 15.8:1

Brakes:                Front 295 mm    Rear 295 mm; cross drilled ventilated discs, brake balance adjustment.

                            AP Racing 4 piston calipers, front and 2 piston calipers rear. Mintex 1166 brake pads.

Unladen Weight:  700 kg

Wheels:                Front 7J x 16;  Rear 8.5J x 17

Tyres:                   Yokohama Front 190/580 R16;    Rear: 230/625 R17
